Restoration of a

Matthew Boulton  Candelstick

Antique Sheffield Plate Matthew Boulton candelabra

This is a 200-YEAR-OLD Matthew Boulton Sheffield Plate candelabra from the early 19th century.

I have repaired this candelabra more than once and hope that I never work on it again. Working on old silver is a Pandora’s box of problems. Old silver rarely meets the durability standards of the 21st century. Treat your silver very gently.

History of Matthew Boulton
and Shieffleld Plate:

Matthew Boulton was a manufacturing silversmith from the late 18th to the early 19th century. He is one of the most prominent Sheffield Plate Manufacturers making original old Sheffield Plate . (This is not the fake Sheffield Plate stamped on many silver objects from the late 19th and 20th century.)

Antique Sheffield Plate is a sandwich of sterling silver, copper, and sterling silver. The silver is like a thin slice of bread on either side of a sandwich, and the copper is the "meat" on the inside of the sandwich. This innovation was an effort to make more affordable silver objects.

Most astounding to metalsmiths and silversmiths, the assembly of the genuine Sheffield Plate used lead. Lead was also used to fill the core of the candlestick body, arms, and candlestick. Thin pieces of silver wire were applied to the seams and edges to conceal the lead or copper core. Needless to say, the candelabra arms and main stem are very heavy.

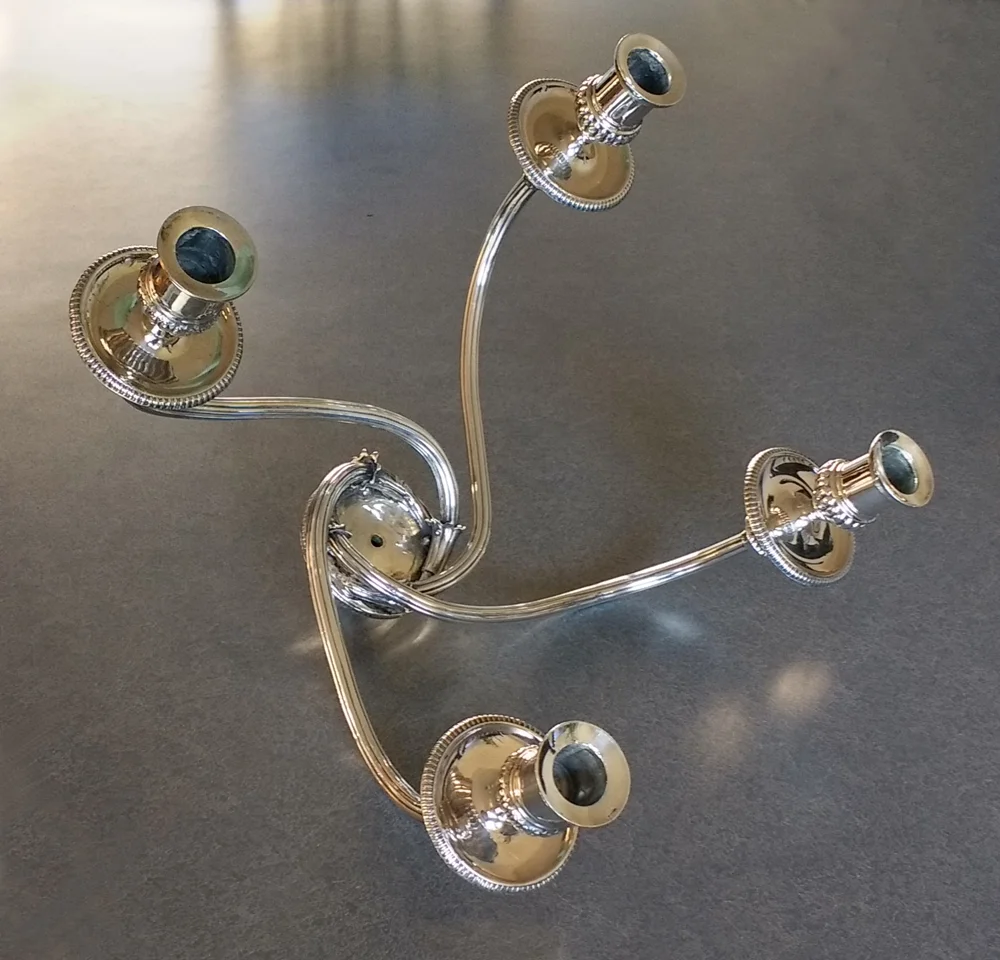

The Matthew Boulton candlestick after fixing its broken arm and polished by Harriete Berman.

The first time I saw this Matthew Boulton candlestick the arms arrived with one arm hanging on by a thread of metal and another arm actively breaking. This page shows step-by-step how it was repaired and the issues involved in the repair.

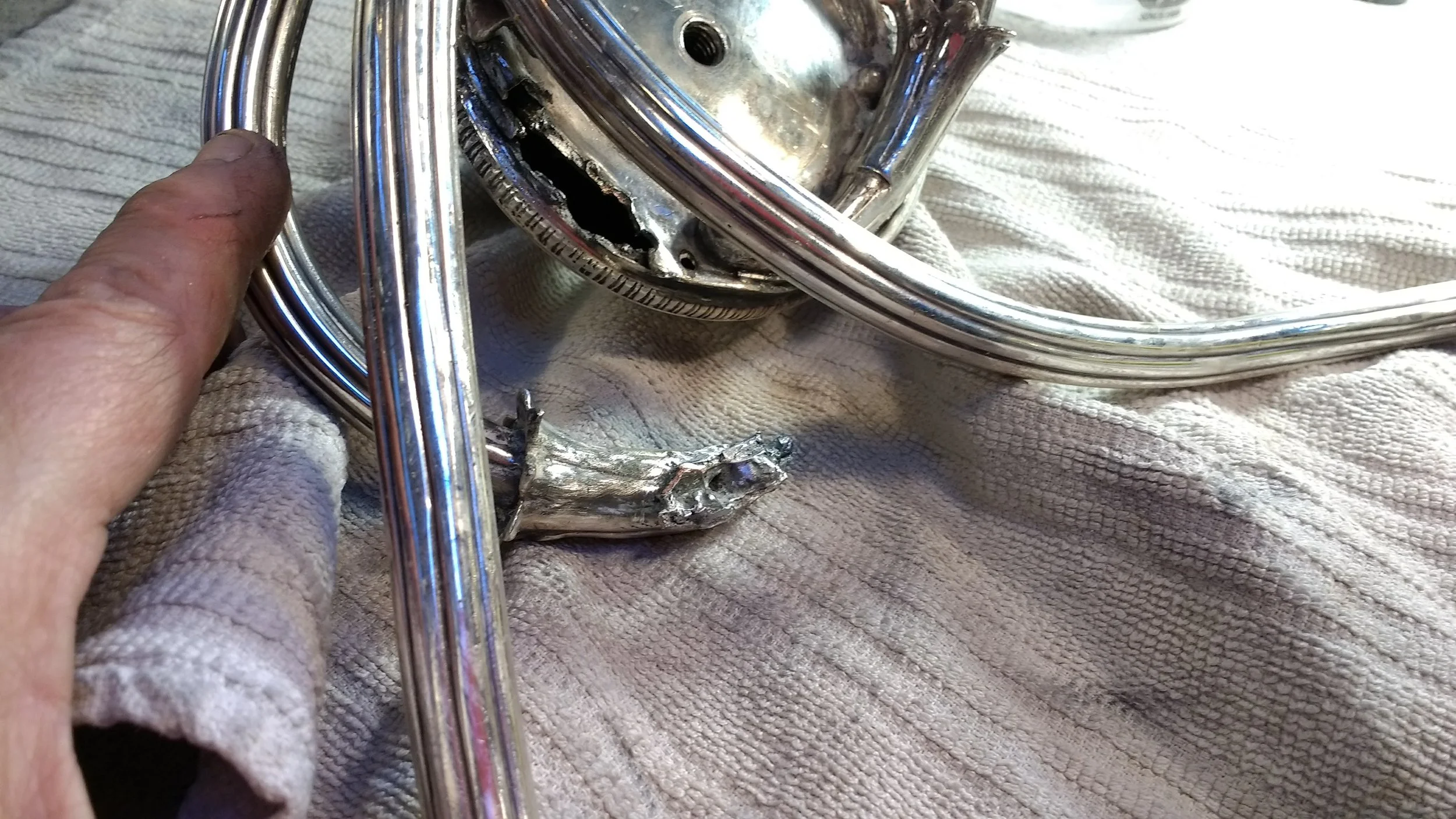

Broken rarm on the Matthew Boulton candlestick arms leaving gaping holes.

The photo above shows the Matthew Boulton candlestick arm broken leaving a gaping hole in the base.

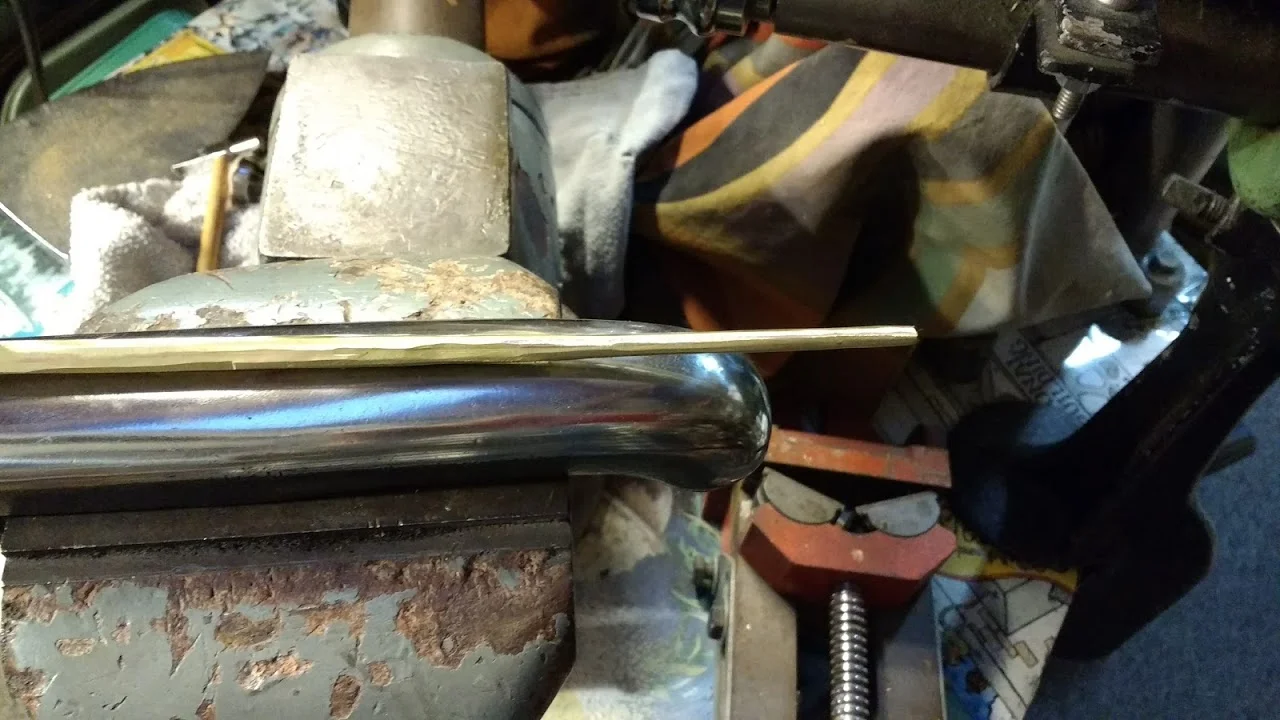

Brass wire in progress while i taper the rod.

My first decision was to created a tapered brass wire to fit inside the care of the arm. Brass can be very hard so it is ideal for a core support.

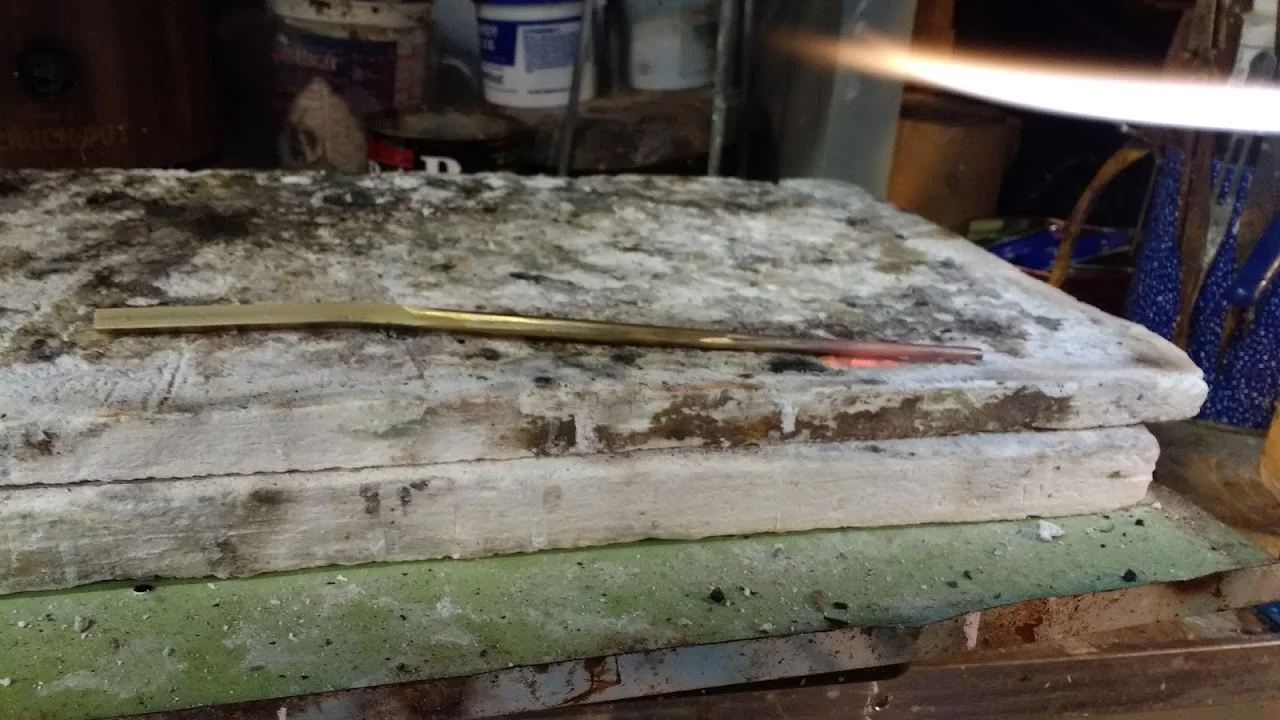

Harriete annealing the brass rod to soften it, so it can be bent to match the curve of the candlestick arm

The brass wire gets very hard quickly. In the tapering process it needs to be annealed to cheery red and air cooled to anneal.

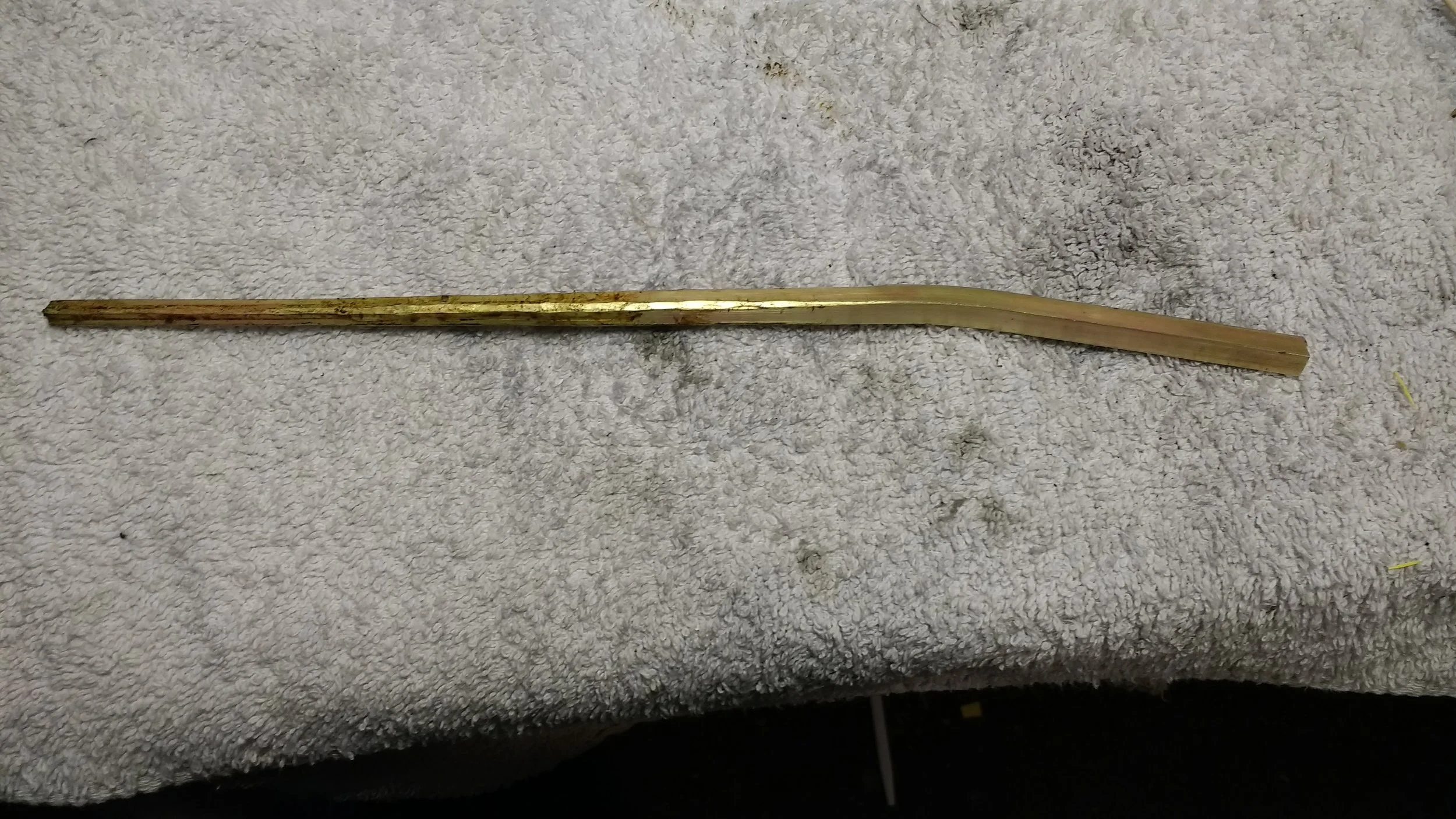

Creating a tapered brass rod was the first step.

I needed to bend the very hard brass rod in a curve to match the arm. Steel tools and hammers work well for this purpose.

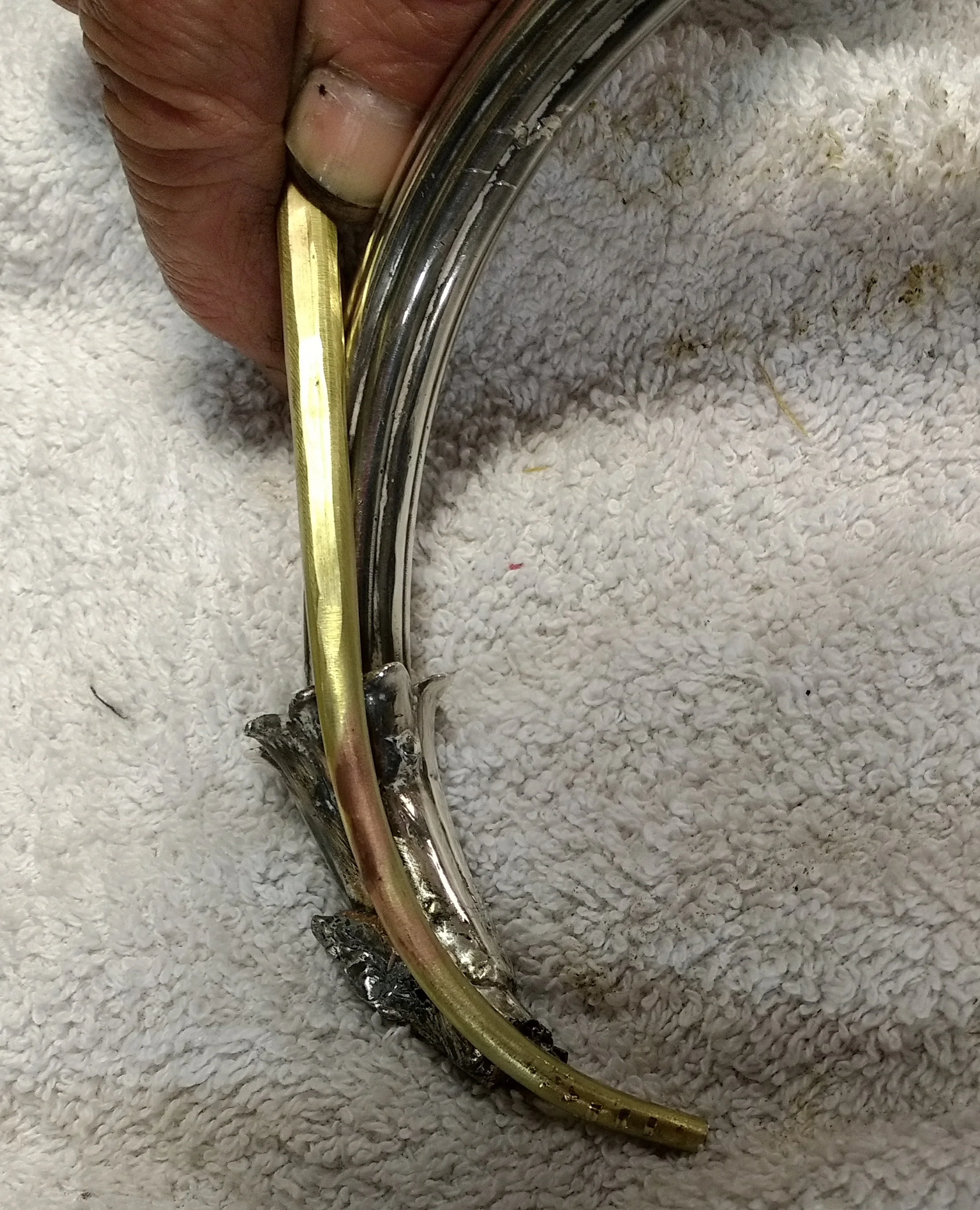

Comparing the curve of the brass rod to the Matthew Boulton arm.

Comparing the curve of the tapered brass rod to the Matthew Boulton arm.

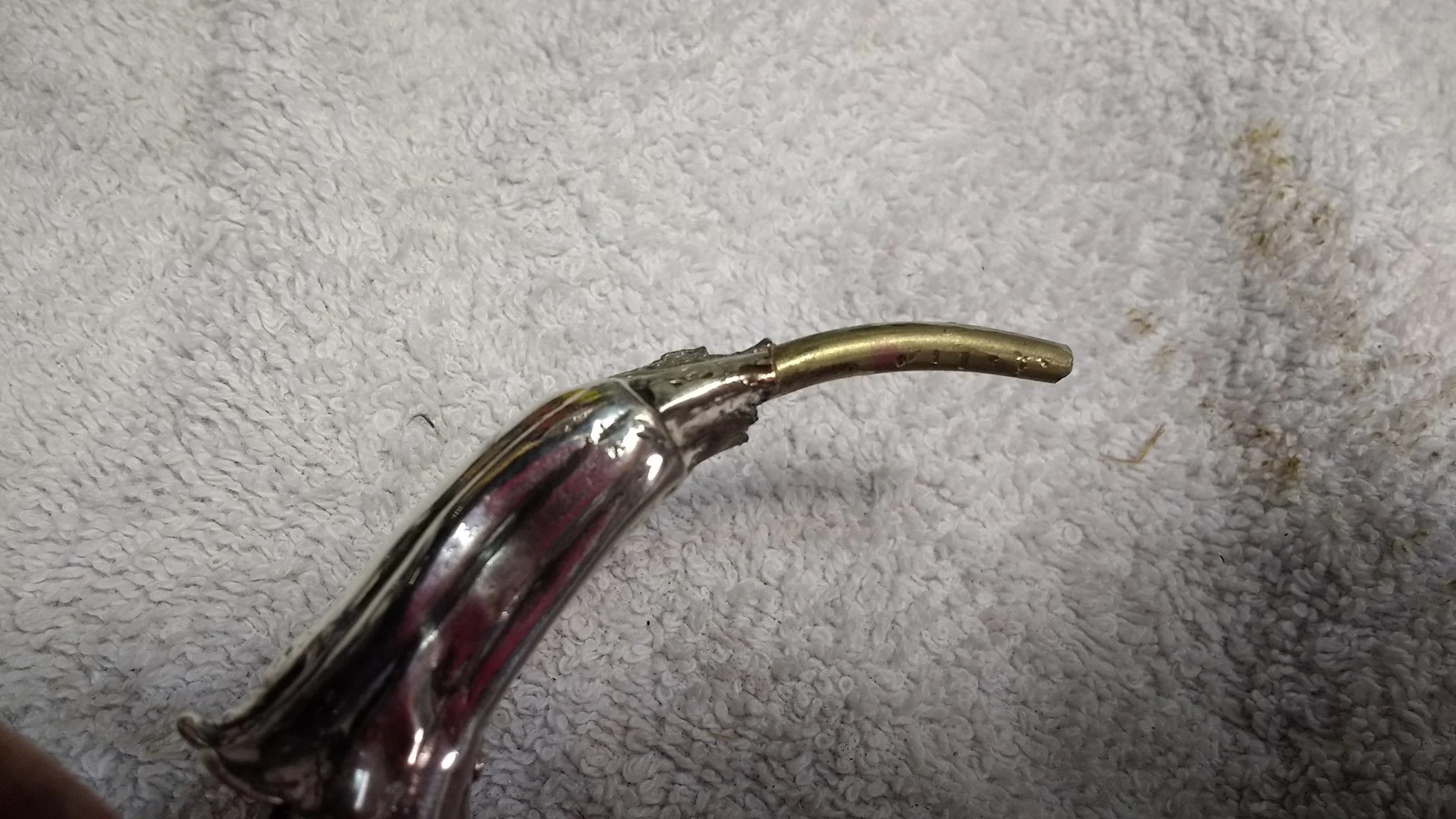

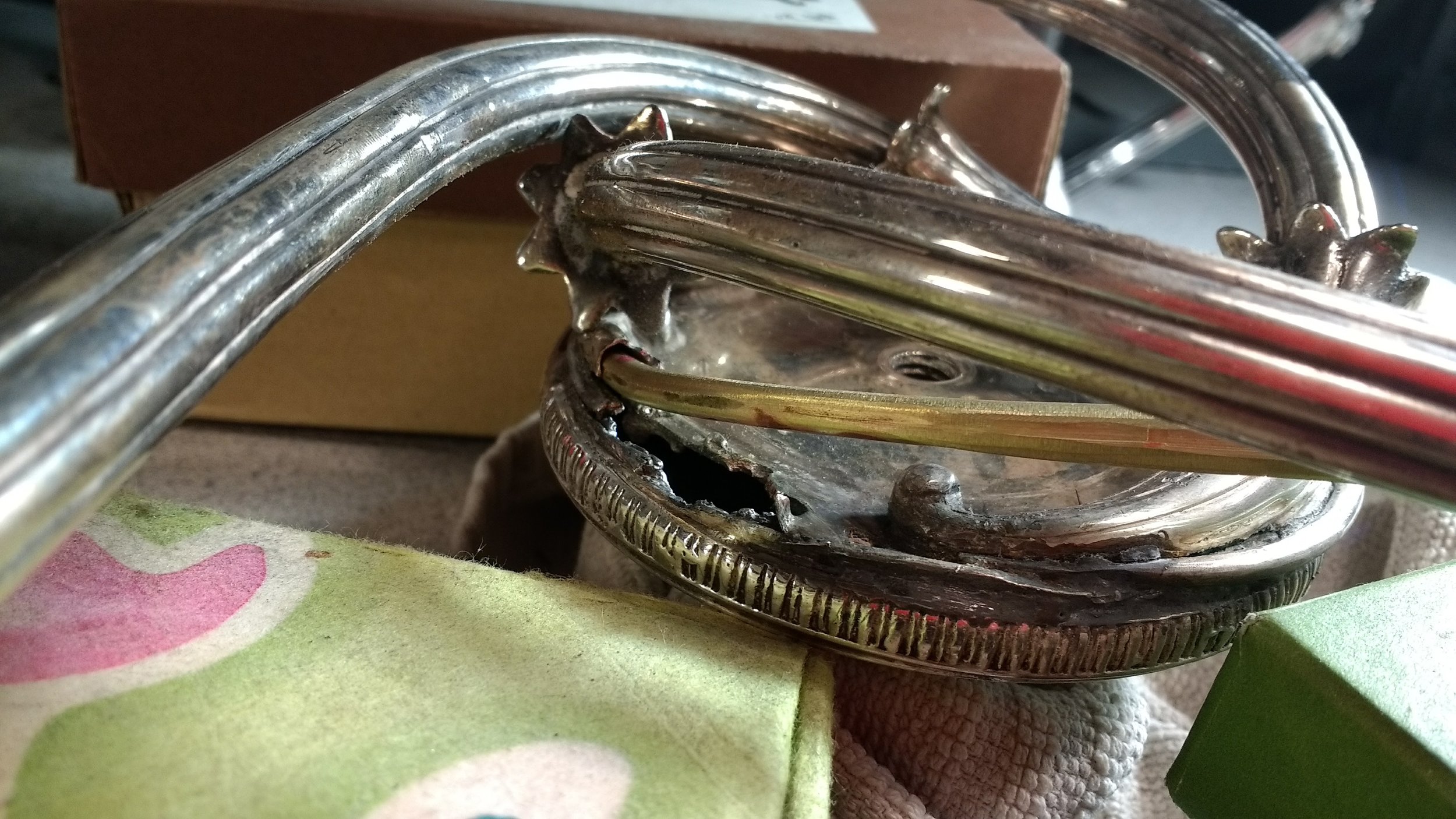

Matthew Boulton came in broken and ripped condition, a tapered brass rod was inserted into the arm to add strength and reinforcement.

The tapered brass rod had to match the curve of the arm so that it could be inserted into the arm for internal support and strengthen the repair.



The brass wire fit inside the arm and was soldered into place on both sides of the repair. I had to heat the silver enough to get the solder to flow, but did not want the lead core to melt and flow out.

The brass rod had to fit inside the silver arm and candelabra arm base.  A core of a solid brass rod would add significantly to the strength of the repair. The brass rod also helped hold the arm in place while it was being soldered so the arm would be perfectly aligned.  This was very challenging in itself.

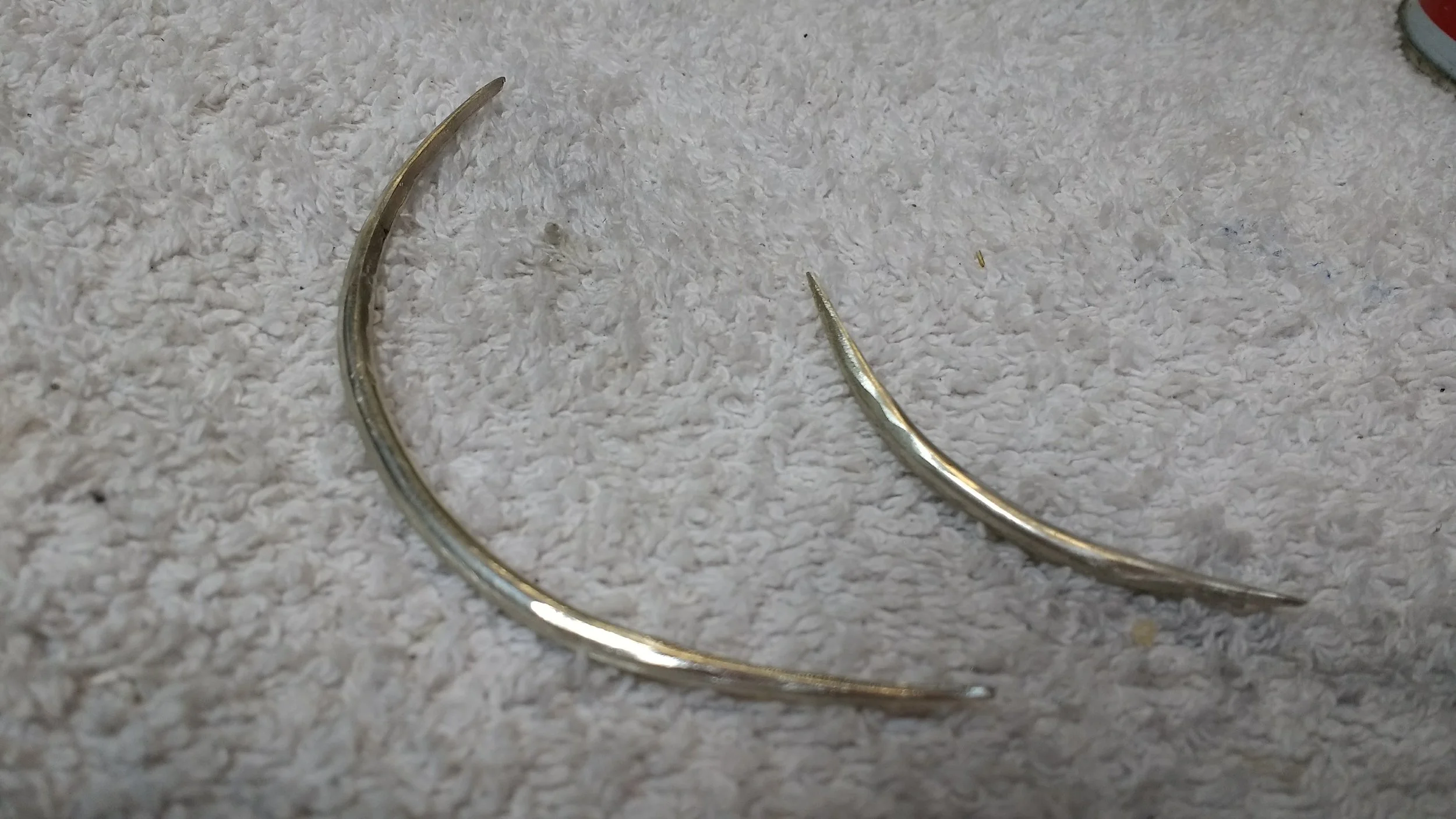

Harriete Berman using two tapered sterling silver wires to cover up the split and strengthen the repair.

After the arms were attached there were other problems to repair. The Matthew Boulton candlestick arms has a sheet of Sheffield plate on top of the arm base, but the weight of the arms was lifting up this top plate as the arm sagged down.

I used chasing tools to push down the top plate, but the arms definitely need more support and  a way to conceal the rip (shown in the top photo.) For this purpose of created two tapered sterling wires to reinforce the broken arm and cover the rip. The larger wire fit the outside. The smaller wire fit on the inside of the arm.

For the 2nd arm that had just started to break, I created a third tapered wire (not shown here.)

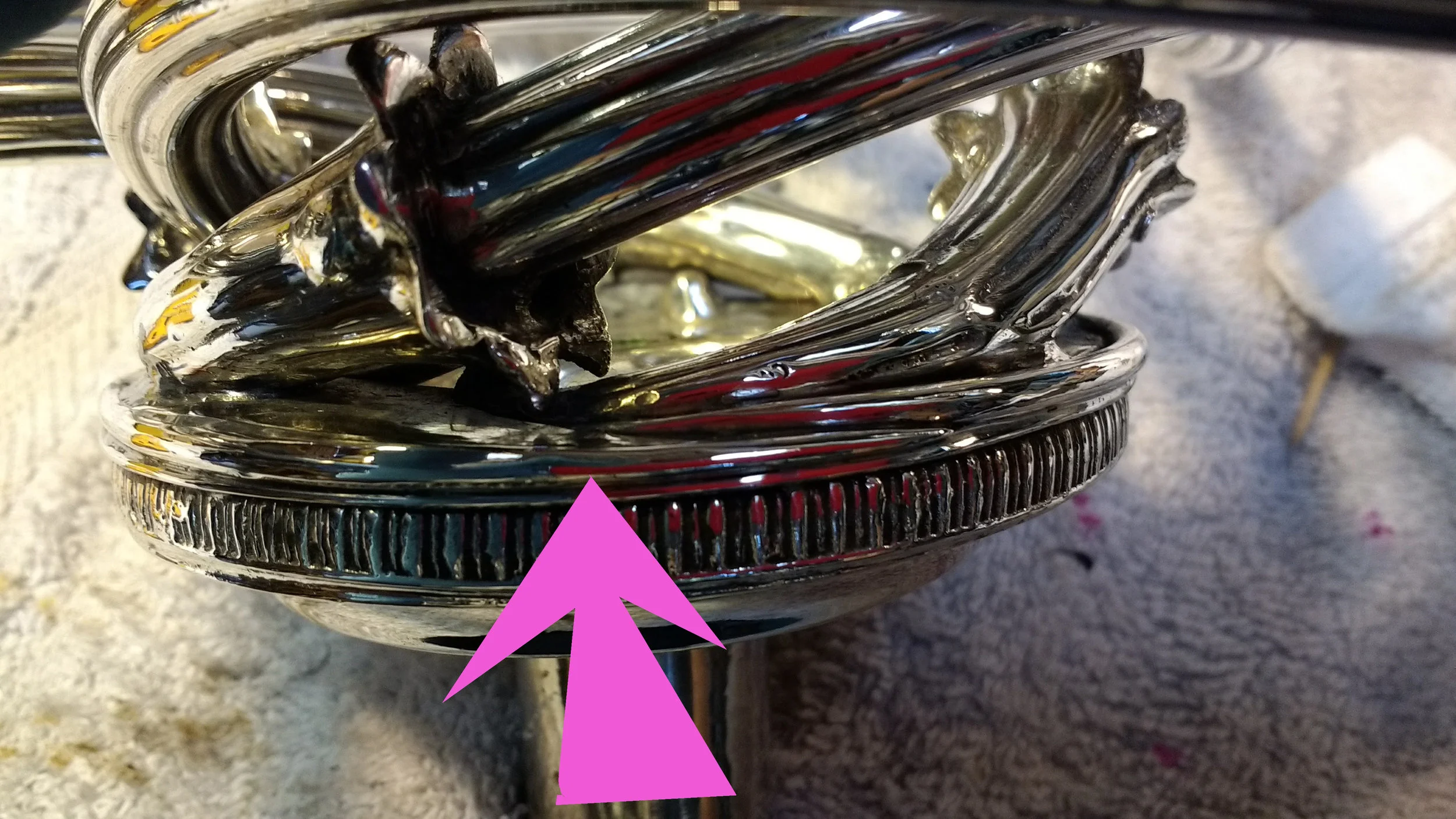

The arrow points to the tappered sterling wire concealing and reinforcing the repair.

The pink arrow point to the tapered sterling silver wire on the outside reinforcing the repair and concealing where it was ripped. One for each of the two arms.

Repairing this Matthew Boulton candlestick was a real challenge both technically and aesthetically. In my opinion, it was important for the repair to be attractive, yet unobtrusive, and authentic to the original design.

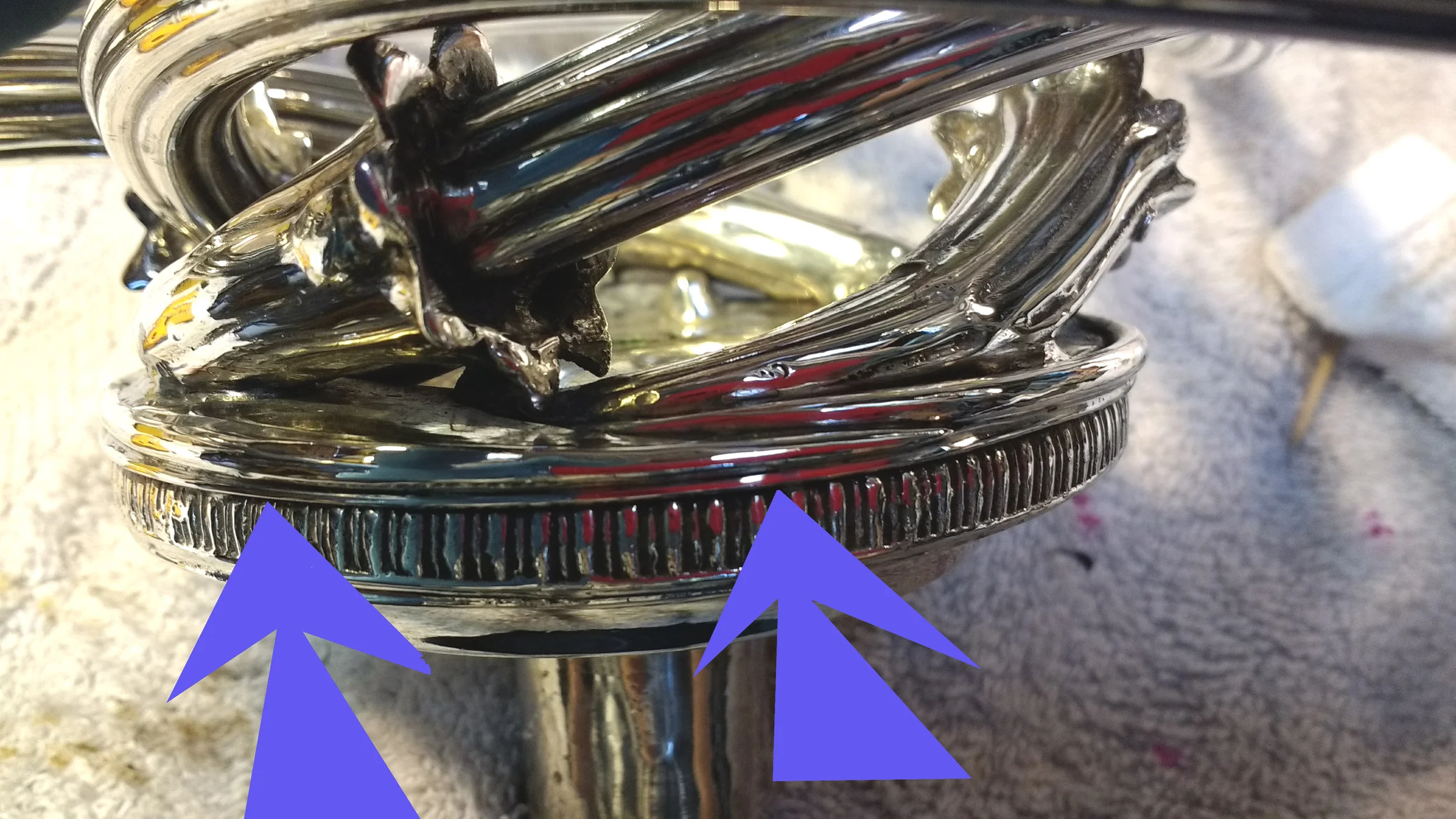

Harriete Berman added a fine sterling silver wire around where the blue arrows pointed to

As previously mentioned, the original old Sheffield Plate was soldered together with lead. Lead is not that strong. It is soft and stretchy. This candlestick seam was opening from the weight of the arms leaning down, and pulling up the sheet.  To reinforce the top layer, I added a very fine silver wire all the way around. The blue wires are pointing to a sterling wire that concealed the lead seam that was opening up, and added structural reinforcement.  Low temperature solder was used to solder this wire in place.

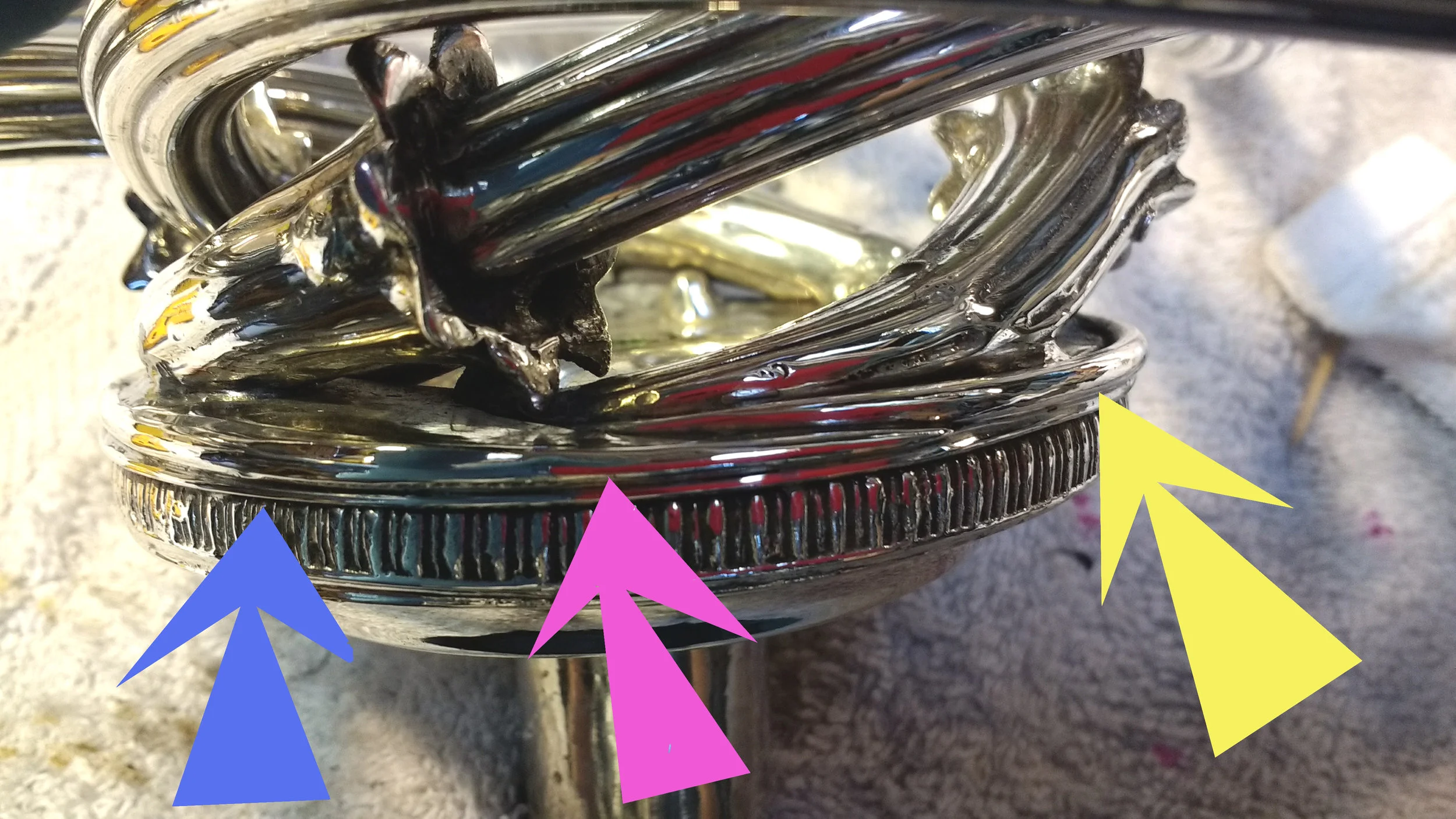

Details of the final repair of a Matthew Boulton candelabra arms.

The blue arrow points to the fine silver wire added to the edge of the base.
The pink and yellow arrows point to the tapered sterling silver wires that support and reinforce the repair of the arms.



The Matthew Boulton candlestick after repaired and polished by Harriete Berman (close-up view)

Matthew Boulton candelabra arms repaired and polished. Using sterling silver wire was helpful in creating a refined appearance. I could polish the sterling after it was polished, and it concealed the copper core and lead seams. It is almost invisible integrating well with the design.
